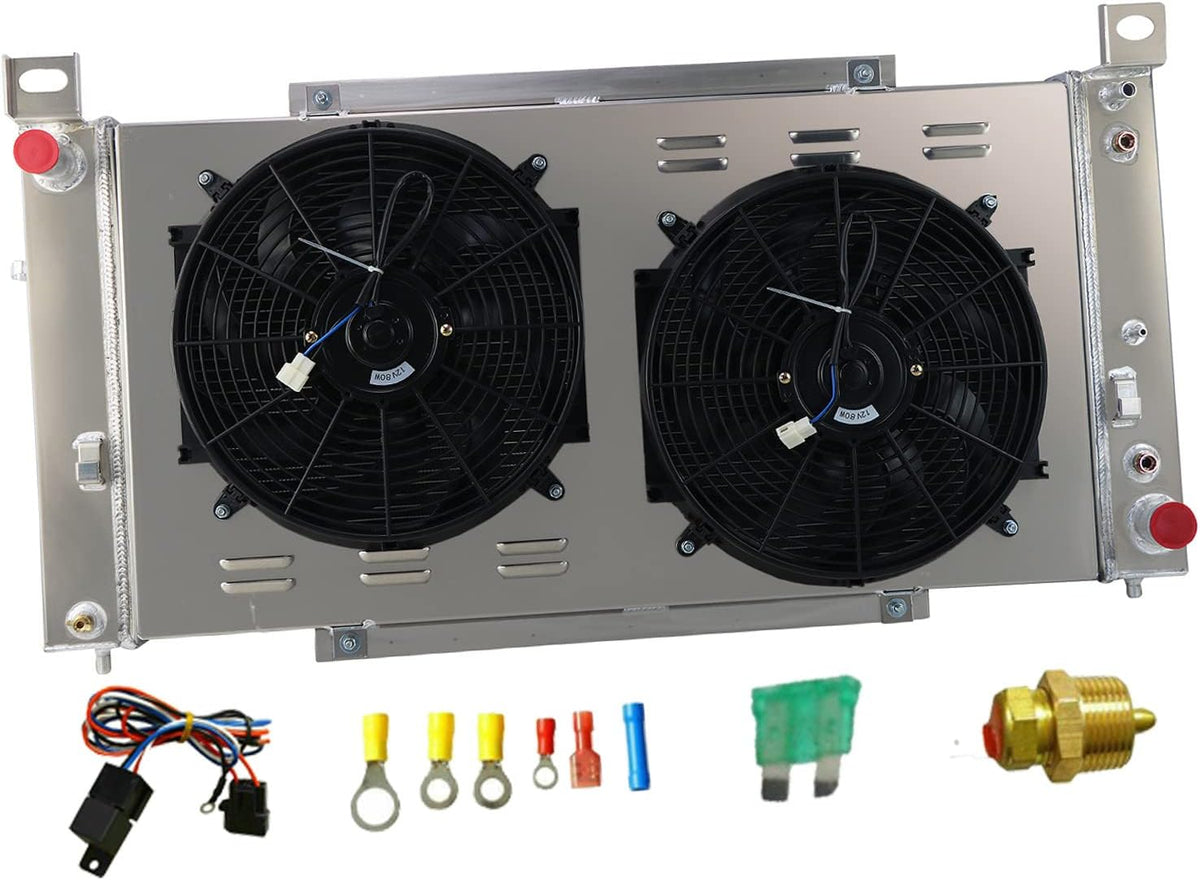

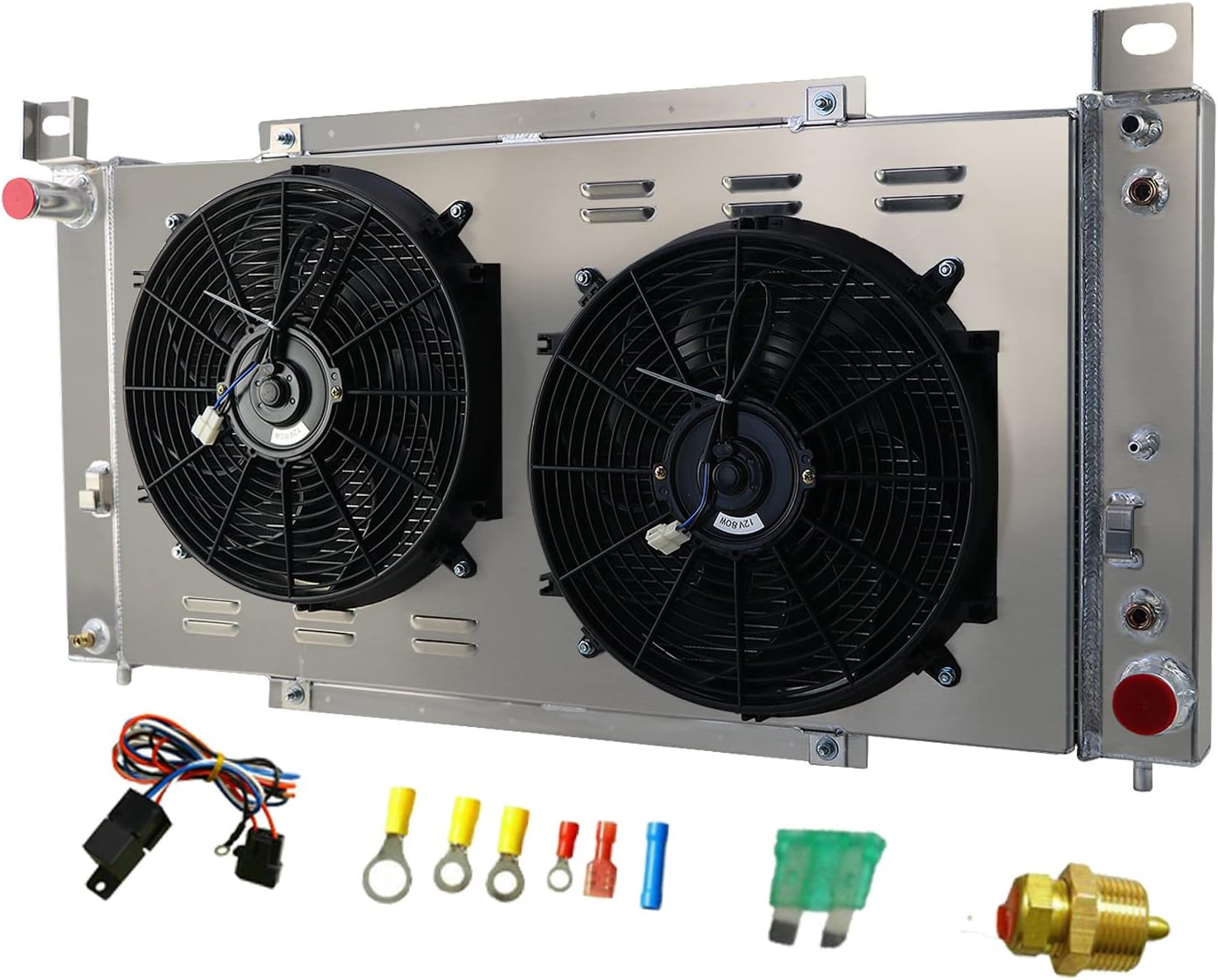

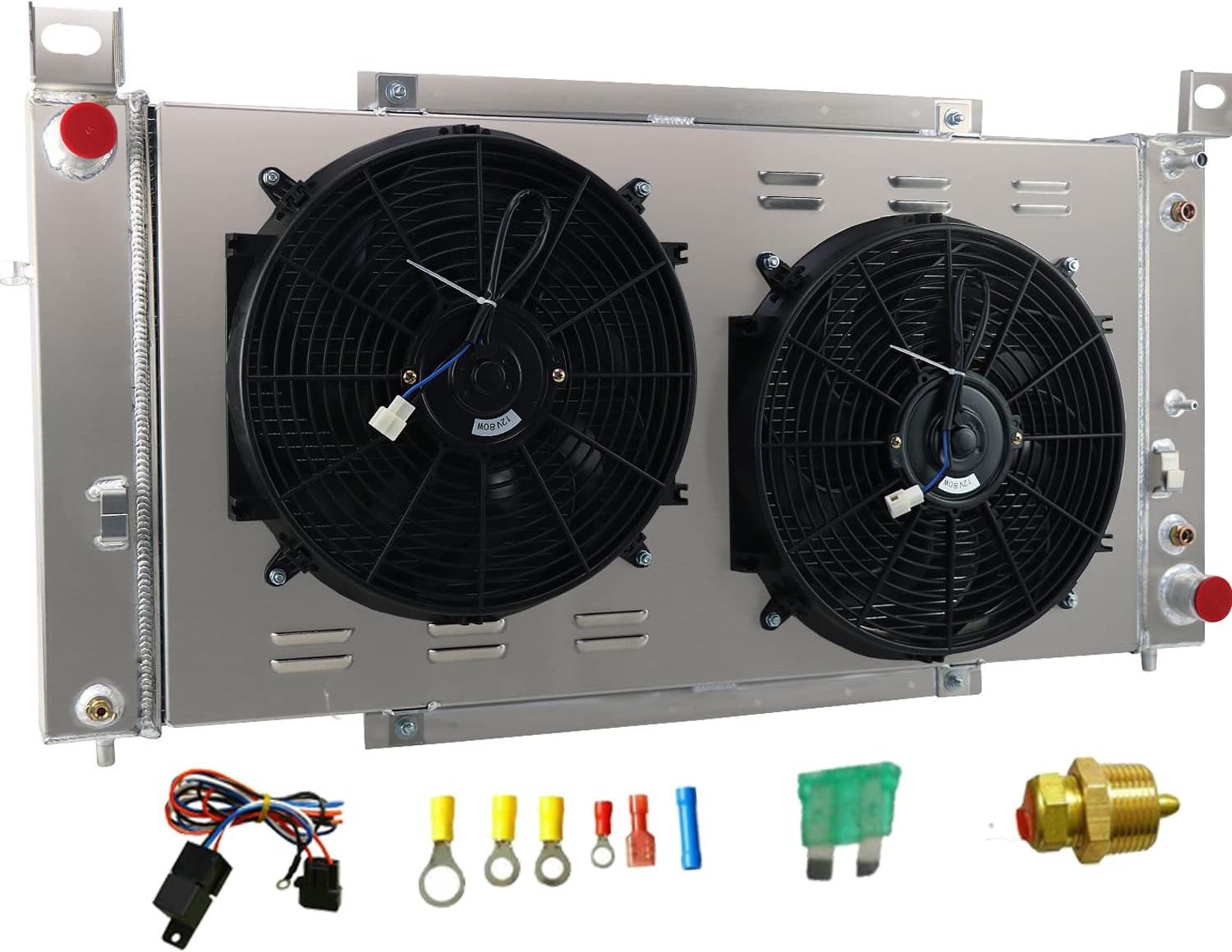

Aluminum 3 Row Radiator with Shroud and 2 x 14" Fan Relay Z282020

Fitment:

For Chevy Silverado Suburban Tahoe Escalade 4.8 5.3 6.0 6.2 V8

For 02-11 Cadillac Escalade 6.0 V8

For 02-11 Chevy Avalanche 1500

For 99-11 Chevy Silverado pickup 6.0 V8

For 00-11 Chevy Suburban 6.0 V8

For 00-11 Chevy Tahoe 4.8 / 5.3 V8

For 99-11 GMC pickup Sierra 6.0 V8

For 00-11 GMC Yukon 4.8 / 5.3 V8

For -09 Hummer H2 6.0 V8

This Listing Is Including:

1 X 3-Row Aluminum Radiator

1 X Aluminum Shroud

2 X 14" Fan

1 X Thermostat Relay Kit

FAN DETAILS:

Maximum Fan CFM: 2200±200

FAN DIAMETER X HEIGHT X THICKNESS:14.05" X 14.05" X 2.5"

Number of Blades: 8 blades (Plastic)

Maximum Fan RPM/ Amp Draw :2,250 rpm / 12.70 amps

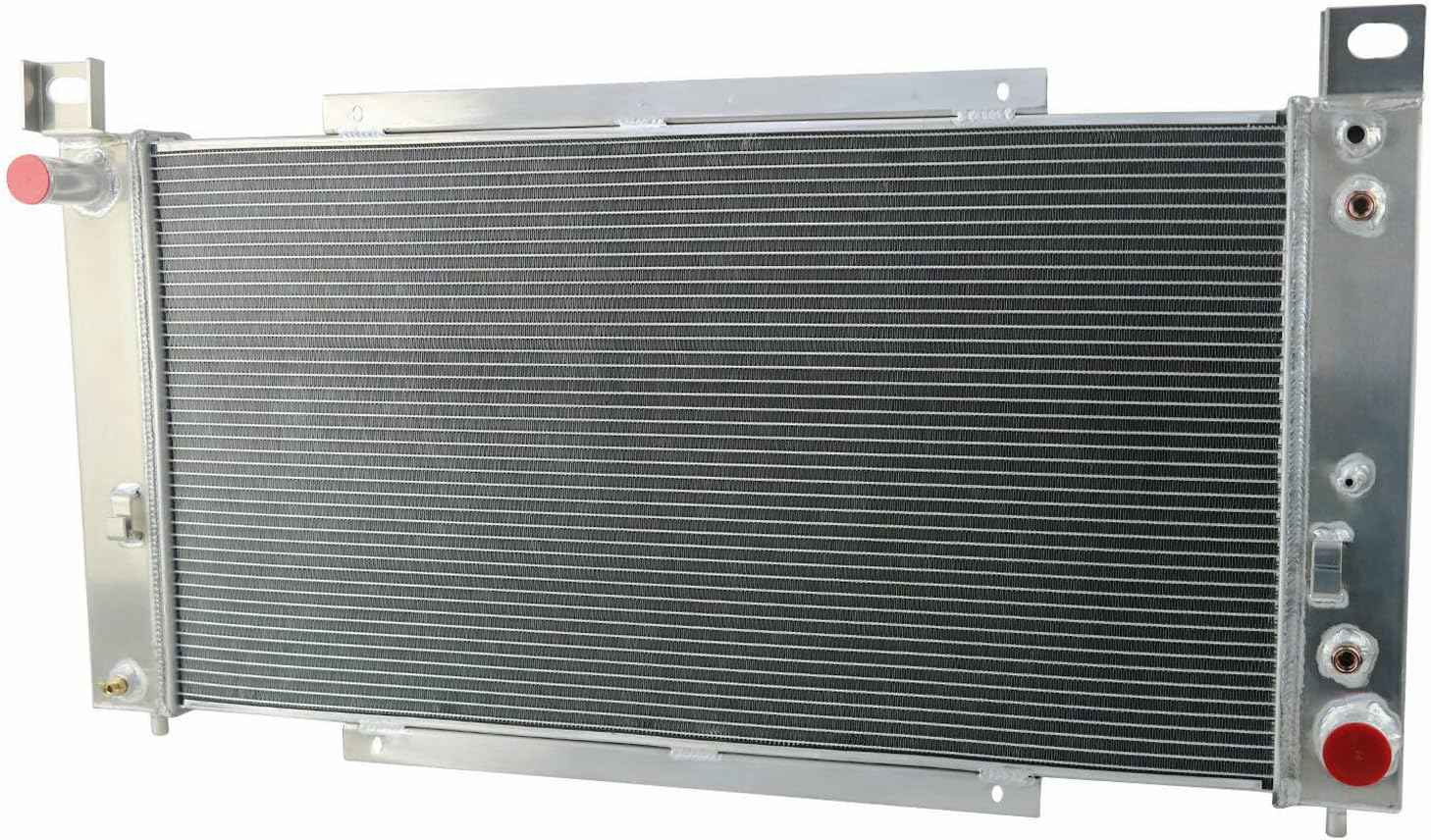

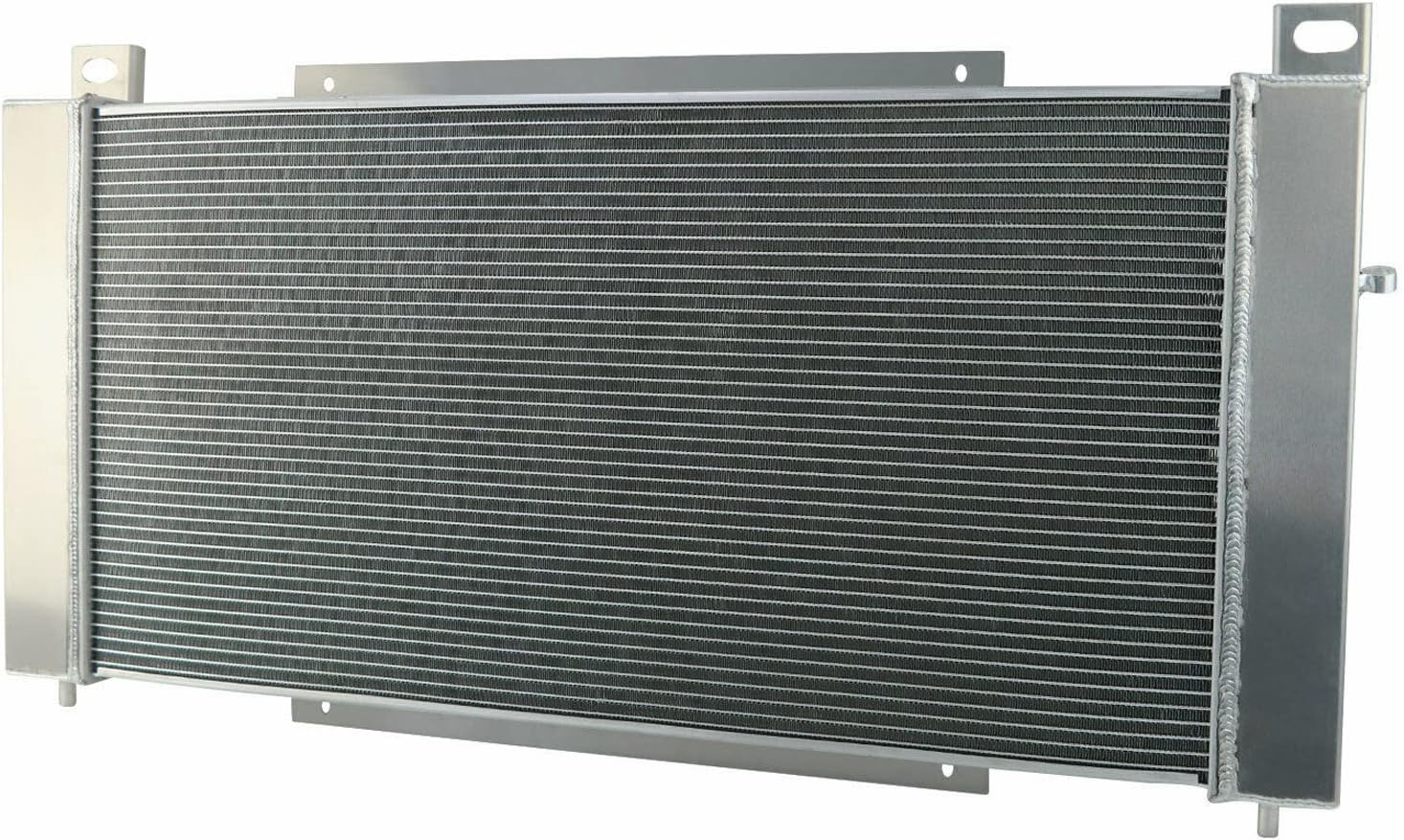

Radiator Details:

3 Row Core Radiators

Material: All Aluminum ; Aircraft 5057 grade aluminum

Transmission: Automatic and Manual.

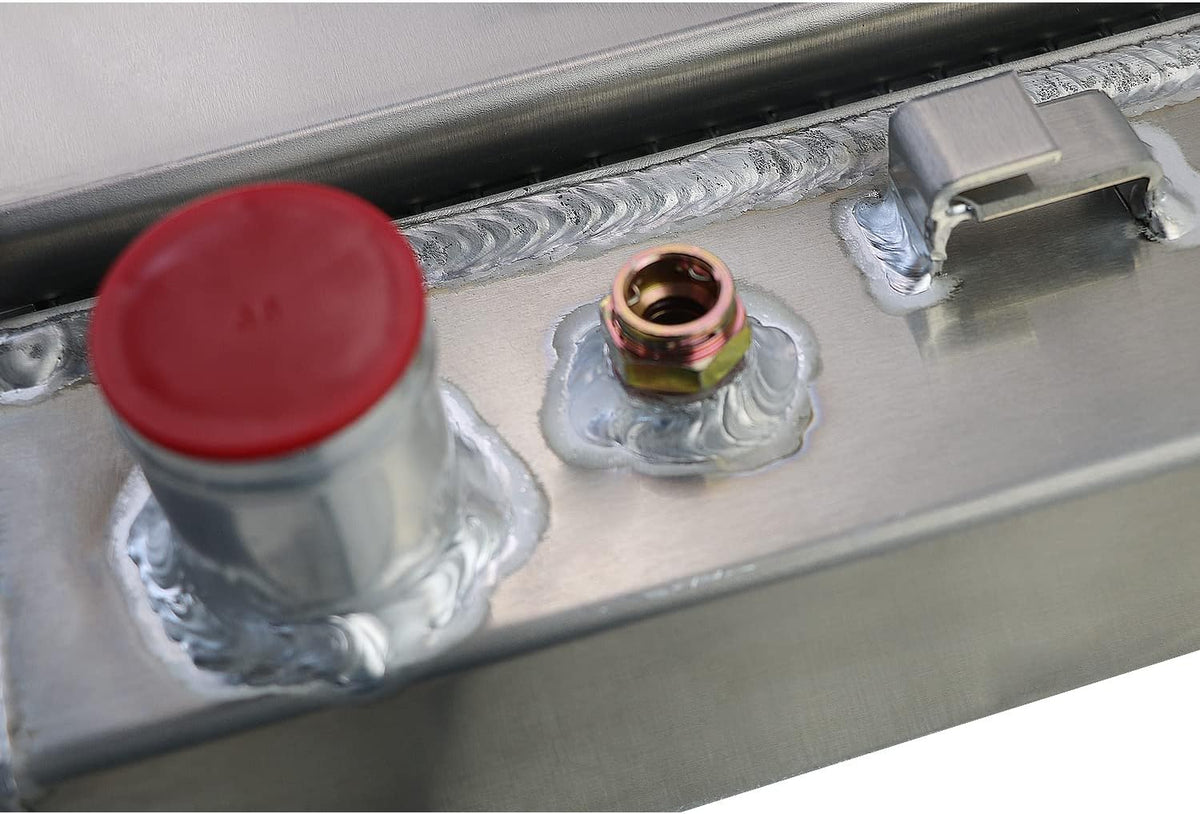

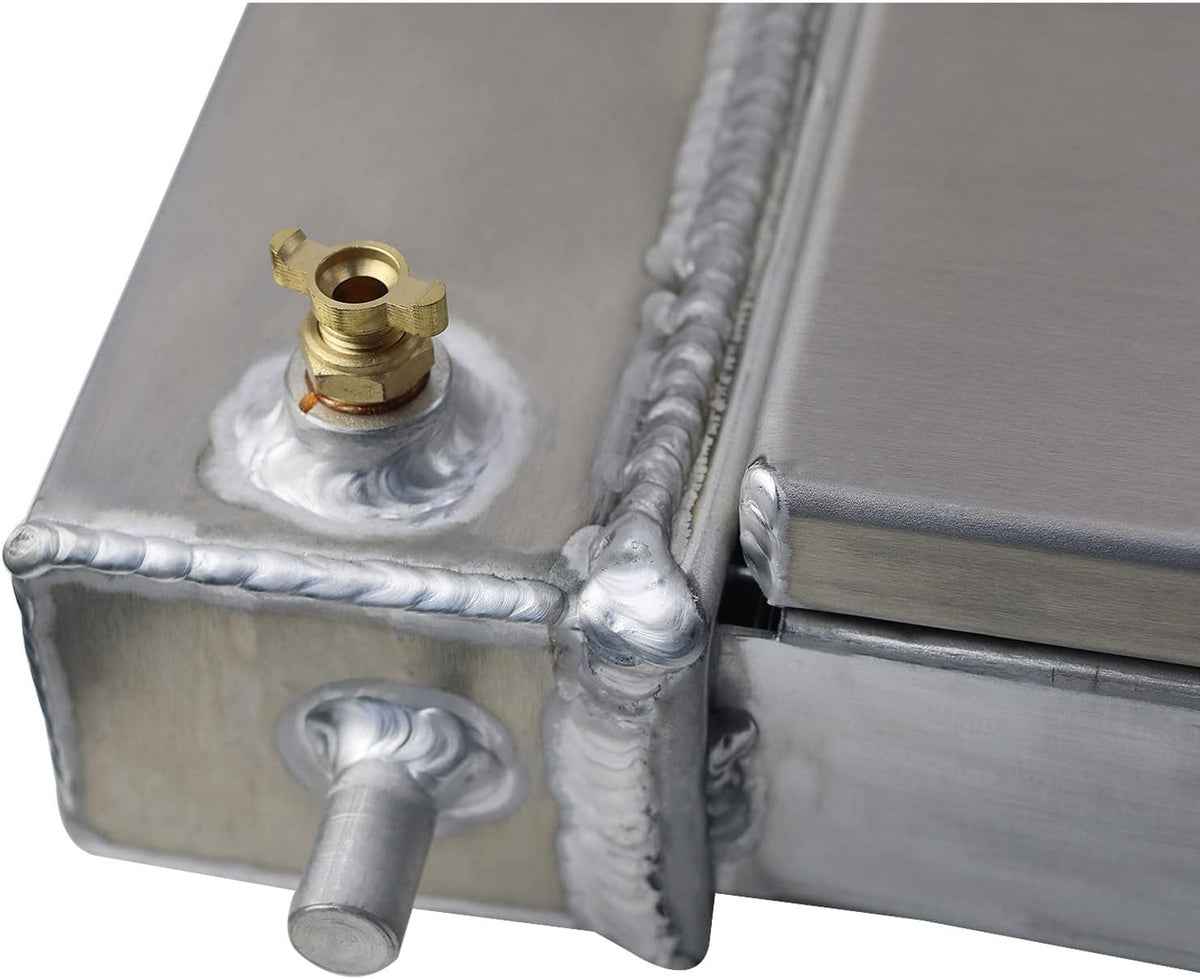

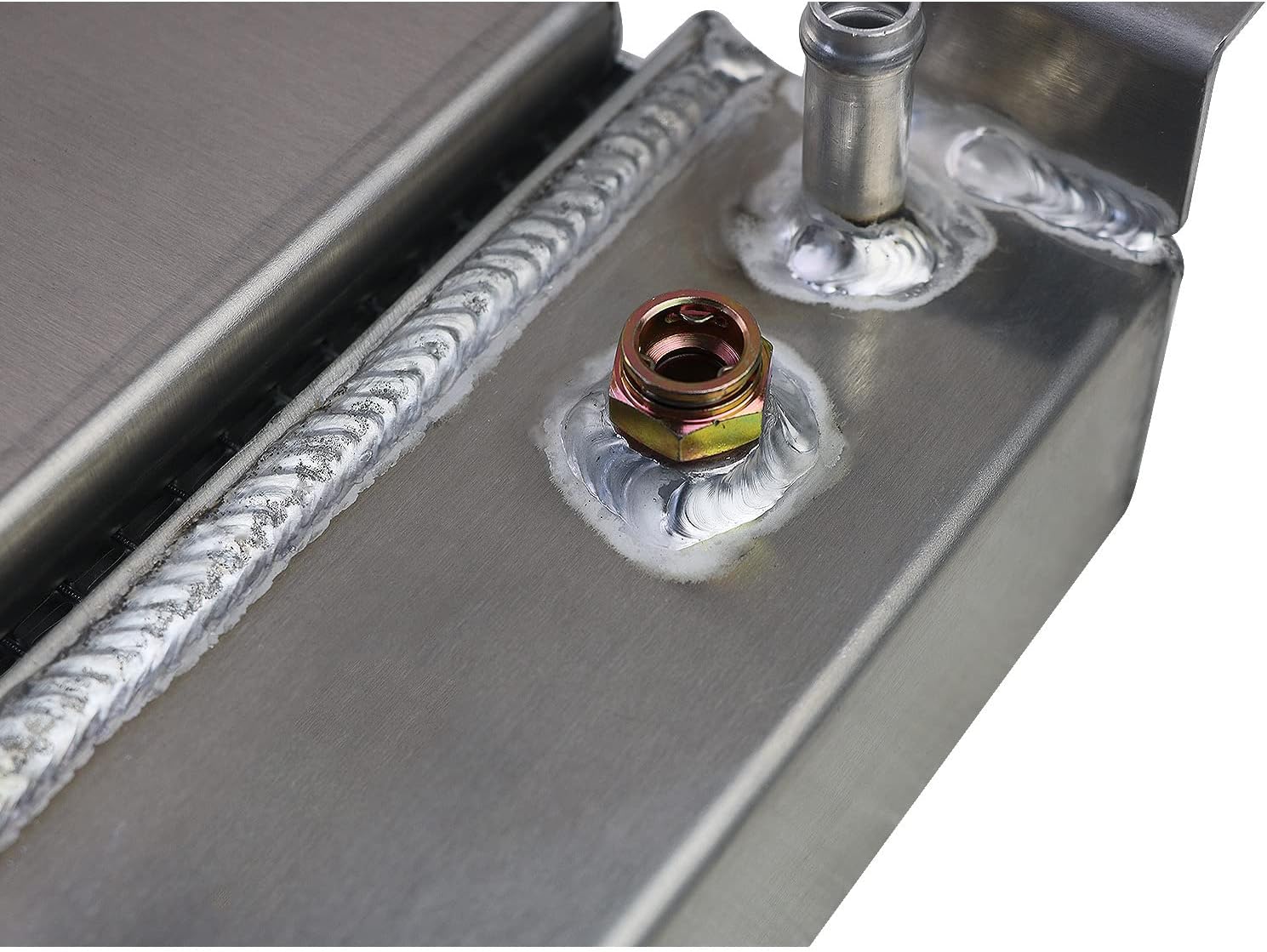

Crafts:100% Tig welded

Features: 100% Leak Tested, Crossflow Radiator, Durability Tested, No Drilling or Modifications Needed For Installation

Placement on Vehicle: Engine Compartment

Fitment Type: Direct Replacement

Relay Kit Instructions:

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.

Thermostat Relay Kit:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.

Probe typically threads into radiator, water outlet or manifold.
